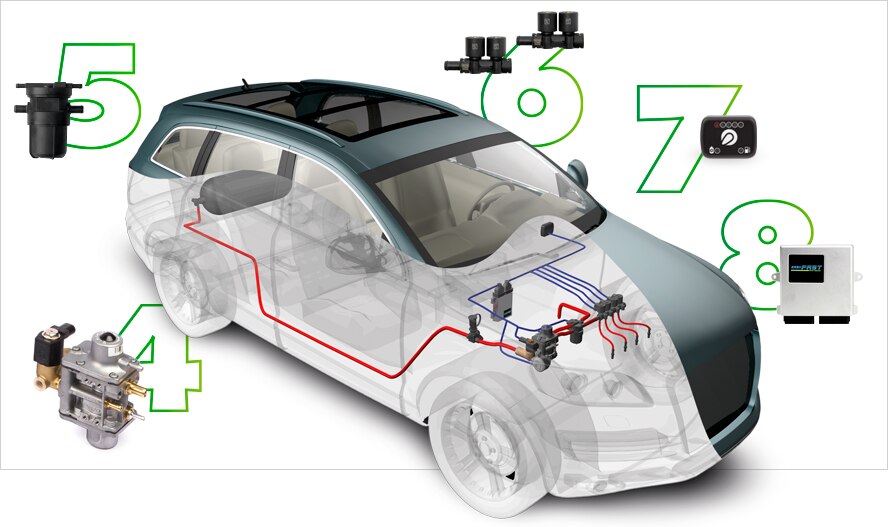

The EASY FAST DIRECT INJECTION system is designed for petrol direct injection engines from 2 to 4 cylinders. The protection and emulation of the fuel injectors are the most relevant aspects of the application and have been developed with consistent laboratory and road tests to ensure maximum driving pleasure. 1 CNG Filling valve: device through which the cylinder is filled. 2 CNG Tank: tank for CNG in gaseous phase. 3 Cylinder Valve: allows gas into and out of the tank, measures level of gas in the tank and contains various safety devices. 4 Reducer: reduces and adjusts the gas pressure. 5 Filter: filter gas, it has sensors which measure the temperature and pressure of the gas and manifold pressure. 6 Injector Rail: injects sequentially the correct amount of CNG into each cylinder. 7 Changeover Switch: allows user to switch between gas and petrol and indicates the level of gas in the tank. 8 Gas ECU: receives signals from various sensors, calculates and provides the parameters of the gas amount to be injected.
